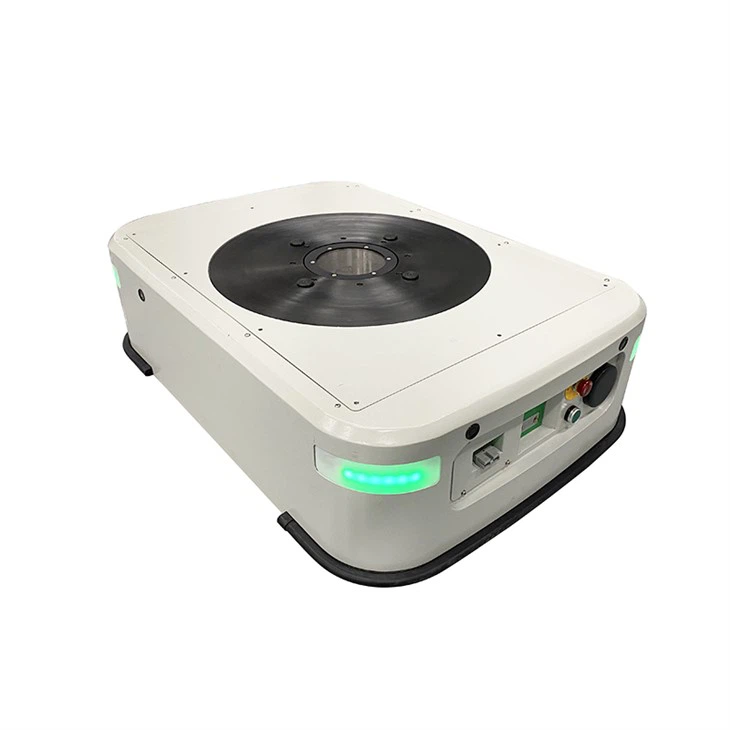

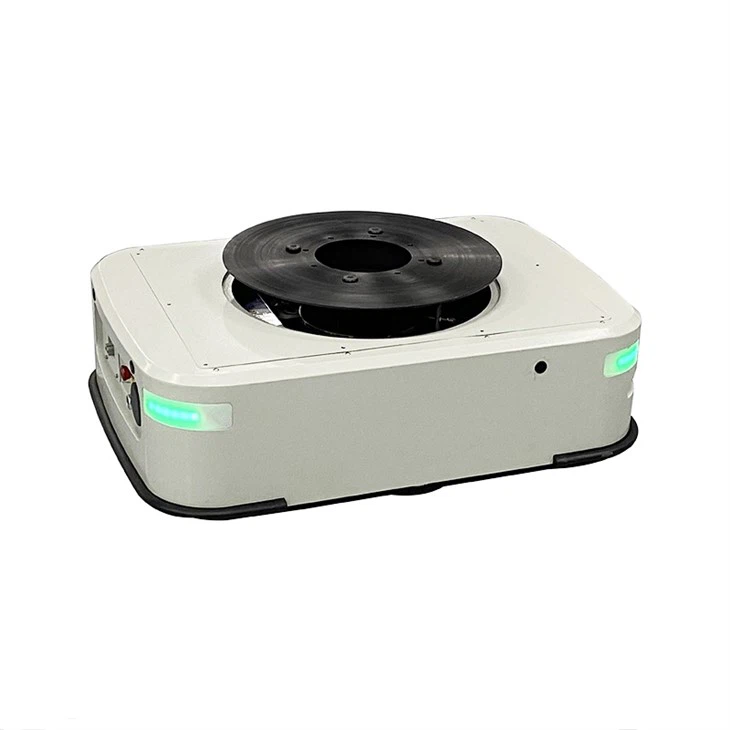

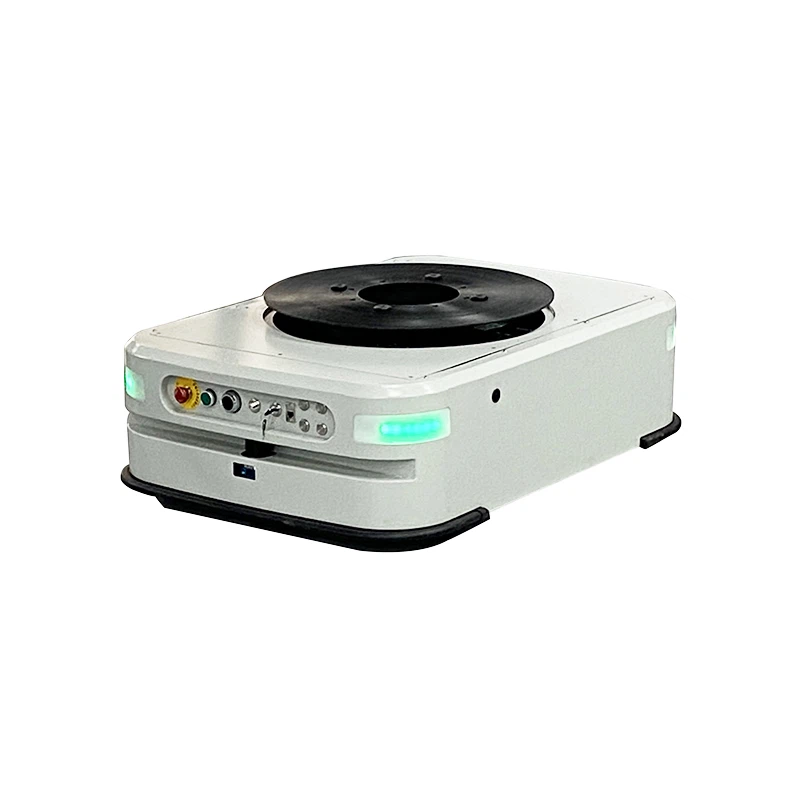

Logistic AGV
Model：MDAGV-Q500

product-1172-359

product-1172-451

With the rapid development of the modern logistics industry, the traditional manual handling method is difficult to meet the efficiency and accuracy requirements of modern logistics and distribution centres. Logistic AGVs are therefore needed to meet the demands of modern logistics and distribution centres. Logistic AGVs are becoming an indispensable tool for logistics and distribution centres due to their high efficiency, flexibility and automation.

Logistic AGV applications in logistic industry

1. Material handling: Logistic AGV automatically moves goods from storage area to sorting area or loading area according to preset routes and procedures, reducing the need for manual handling and improving handling efficiency.

2. Material transport: Logistic AGVs can be used for long distance transport, transporting materials from production lines or storage areas to different areas, realising the automation of material supply. This not only reduces the time and cost of manual handling, but also improves the accuracy and efficiency of material transport.

3. Automatic loading and unloading: Logistic AGVs can pick up goods in the loading and unloading area and deliver them to the designated area for sorting or storage. This automated loading and unloading process greatly improves the efficiency and accuracy of logistics operations.

Dimension

product-1373-829

Specification

ltem	Data
Model	MDAGV-Q500
Navigation method	QR code + gyroscope
Dimensions	L1000W690H400mm
PayLoad	500kg
Moving speed	0.8m/s
Battery Data	48V,30Ah
Weight	<200kg
Obstacle avoidance	Ultrasonic sensor and Bump sensor
Positioning accuracy	±5mm
Lifting distance	50mm
Communication	CAN/RS232/RS485/1O/WIFI

Product Application

Automated Warehousing

Solve the problems of lack of labor, high logistics costs, and low logistics efficiency in logistics activities.

QR Code Navigation

Scanning the QR code on the ground to get the location and path information, with high positioning accuracy, high path flexibility and relatively low cost.
