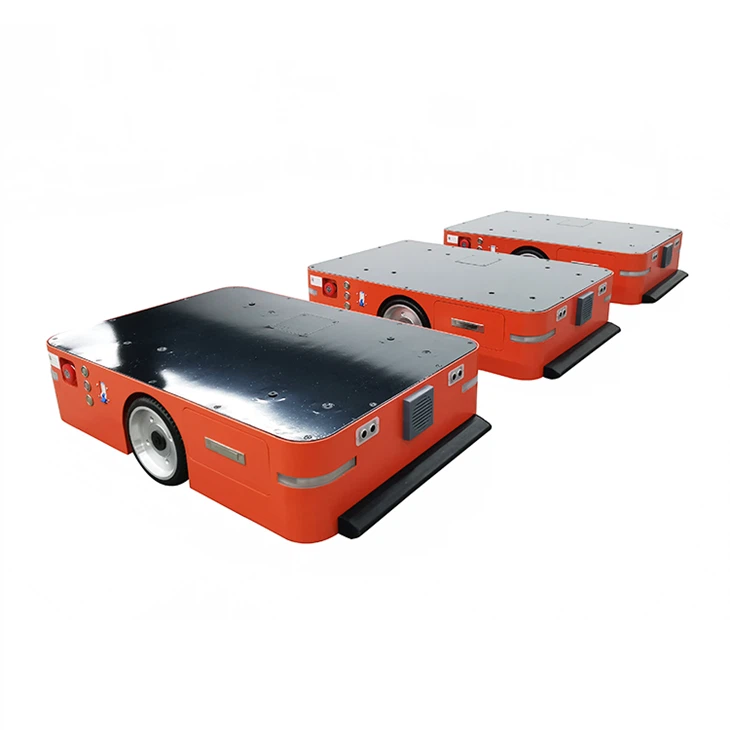

Smart Guided Moving Vehicle
Smart Guided Moving Vehicle

Smart Guided Moving Vehicle

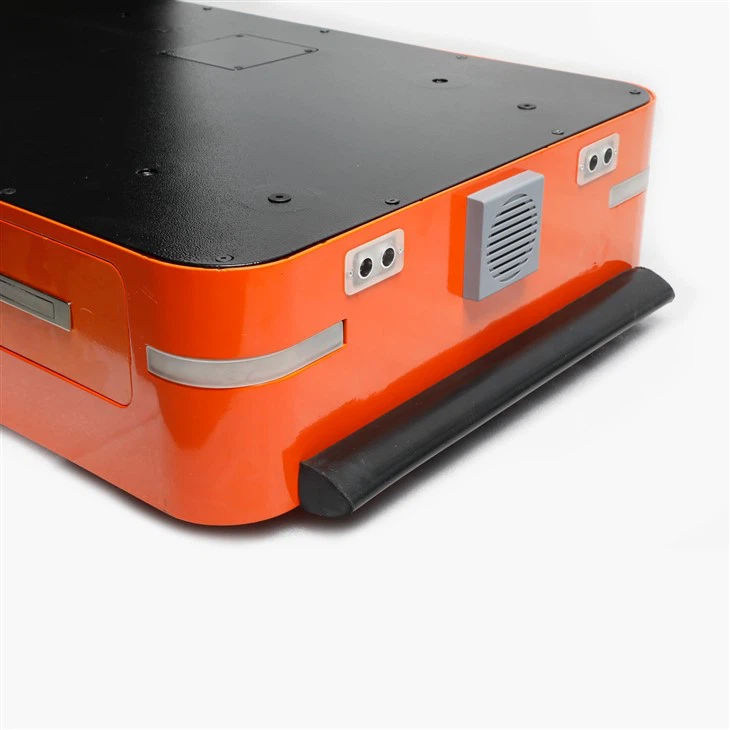

During the travelling process, the Smart Guided Moving Vehicle can automatically identify obstacles and take appropriate obstacle avoidance measures to ensure safe and smooth transport. Sensors sense the presence of static or dynamic obstacles on the travelling route and enable emergency braking or bypassing of the obstacles.
Send Inquiry
Chat Now

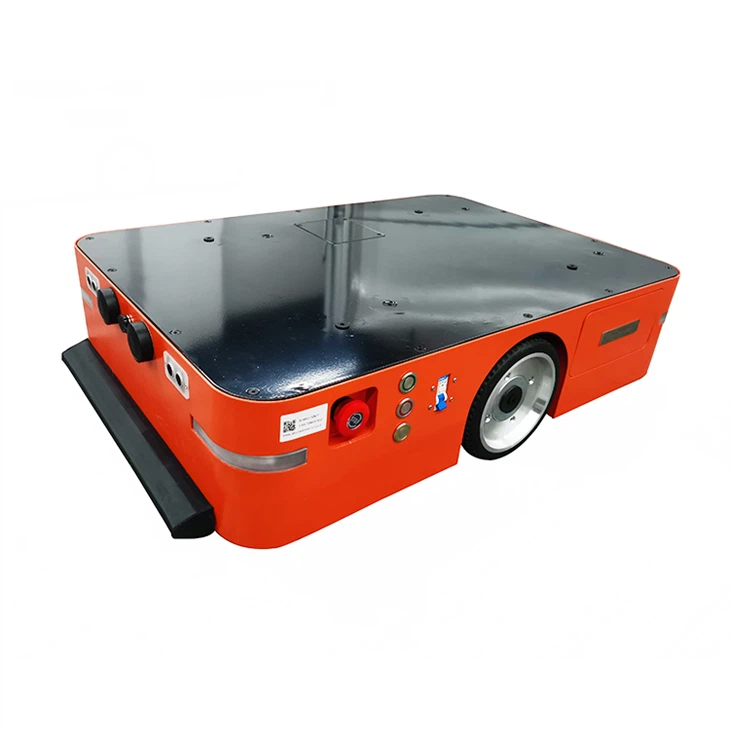

Smart Guided Moving Vehicle
Model:MDAGV-B02



product-1172-359

product-395-529

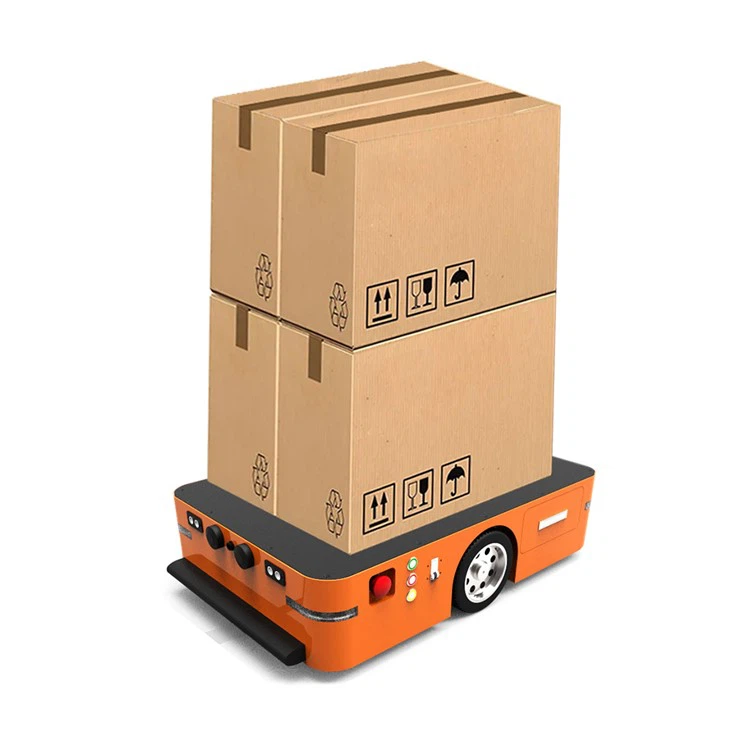

Smart Guided Moving Vehicle focuses on intelligent interaction experience and plays a core role in retail logistics, e-commerce sorting centers and other scenarios, supporting the rapid picking and transfer of order goods. The product features a visualized operator interface that allows operators to remotely issue task orders and monitor the transportation process in real time. Its flexible path planning capability is adapted to diversified warehouse layouts. Whether it is a dense racking area or an open sorting area, the route can be optimized through intelligent algorithms, and with efficient and flexible transportation performance, it helps enterprises improve logistics turnover efficiency and reduce operating costs.



Dimension





product-936-505





Specification





ltem

Data

Model

MDAGV-B02

Navigation method

Magnetic navigation

Dimensions

L880mmxW560mmxH212mm

PayLoad

200kg

Moving speed

MAX 0.9m/s

Battery Data

DC24V,30Ah,Lithium Iron Phosphate Battery

Weight

<100kg

Appearance material

Steel plate

Obstacle avoidance

Ultrasonic sensor and Bump sensor

Positioning accuracy

±5mm

Control function

Map editing/scripting/task chain editing/various API.etc

Communication

CAN/RS232/RS485/I0/WIFI





Features



product-1172-427

product-1172-472

product-1172-462







AGV structure



product-1172-723

product-1172-1040

product-1172-720





Application





product-1172-384





Certification





product-1172-525





Office





product-1172-326





Package





product-1172-257





Delivery





product-1172-505





FAQ





product-1172-531
