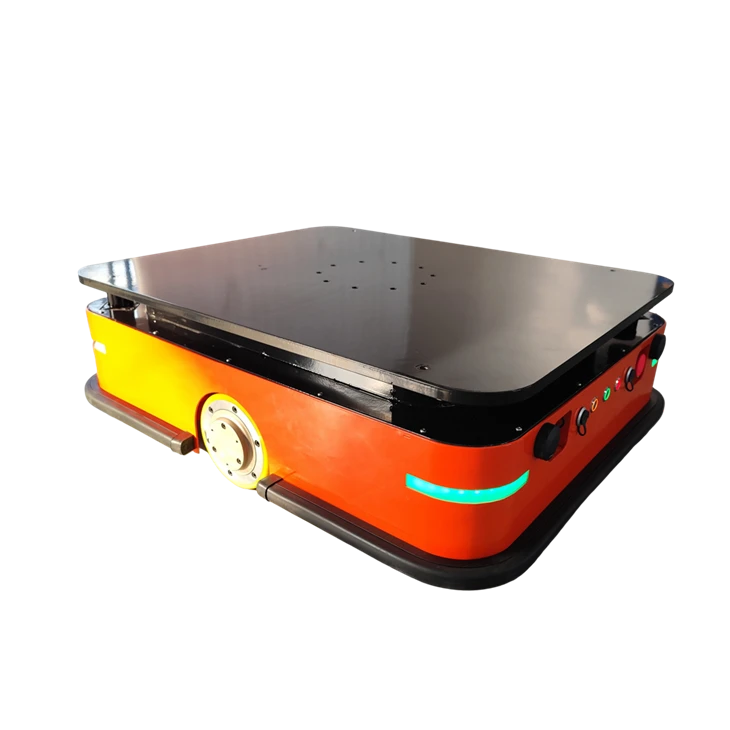

Elevate AMR
Elevate AMR

Elevate AMR

Laser SLAM Jacking AMR with lifting devices combine automatic guidance technology and lifting mechanisms to travel autonomously on a preset path and lift materials to a specified height as needed. Its core components include agv lift vehicle body, drive unit, navigation system, control system, lifting mechanism and safety protection system.
Send Inquiry
Chat Now

Laser SLAM Jacking AMR
Model:MDAMR-SL600

product-1172-359

product-1172-456



High-precision laser navigation: Laser SLAM Jacking AMR adopts advanced laser navigation technology, which can realize precise positioning and path planning in complex and dynamic environments to ensure efficient operation.

Powerful Lifting Function: Equipped with a high-performance lifting mechanism, the Laser SLAM Jacking AMR is capable of easily handling heavy loads up to 1,000 kilograms, which is suitable for a wide range of industrial scenarios.

Intelligent Obstacle Avoidance System: Built-in multi-sensor fusion technology detects obstacles in real time and dynamically adjusts the path to ensure safe operation.

Flexible deployment: supports rapid deployment and scene adaptation, without the need for large-scale remodeling of existing facilities, reducing implementation costs.
Applications:

Warehousing and logistics: used for cargo handling, stacking and sorting in automated warehouses to improve warehousing efficiency.

Manufacturing industry: for transportation of raw materials, semi-finished products and finished products in production lines, reducing manual intervention.

Medical industry: for transportation of medicines, instruments and supplies within hospitals, improving logistical efficiency.

Feature:

Supports multi-machine collaboration, able to work with other AMRs or AGVs to accomplish complex tasks.

Provides real-time data monitoring and remote control functions for easy management and maintenance.





Specification





ltem

Data

Model

MDAMR-SL600

Navigation method

SLAM

Dimensions

L926*W756*H285mm

Lifting Height

60mm

Drive Type

Differential drive

Walking Direction

Forward and reverse/left and right tur/ rotate in place

Maximum Speed

1.5m/s

Rated Load

600kg

Charging MethodBattery

Lithium iron phosphate battery

Positioning accuracy

Manual/automatic charging

Safety Protection

LIDAR+Collision Bumper+Emergency Stop Button

Communication

Wireless





Products Description





1laser navigation

Laser Navigation for Flexible Industrial AMR Deployment

The MDAMR-SL series supports autonomous navigation in manufacturing and warehouse settings by utilizing laser navigation and laser SLAM with multi-sensor fusion. The AMR can facilitate flexible material handling, shelf transfer, and production-line logistics while simplifying on-site implementation without the need for guide wires or fixed landmarks.

2 600kg

600kg heavy load and 50mm lifting capacity
MDAMR-SL600 is equipped with a rated load capacity of 600kg and a lifting height of 50mm, which can be used for handling goods, shelves, and material vehicles in factories and storage environments. By using a lifting mechanism to carry and transport materials, it adapts to various automated handling scenarios such as production lines, warehousing, and in plant logistics, providing a more flexible AMR solution for industrial material handling systems.

3 long endurance

Automatic charging, supporting 24-hour continuous operation
The MDAMR-SL600 supports automatic charging function, and when the battery level is low, the AMR can autonomously return to the charging station for charging. Adopting contact charging method, the charging brush board on the vehicle body contacts the automatic charging station to start charging, without the need for manual plugging and unplugging of the charging interface. Combined with a rated operating time of 6-8 hours and a full charge time of approximately 2 hours, it can meet the demand for 24-hour uninterrupted work and provide continuous operational support for automated material handling in factories and warehouses.

4 deployment

From laser SLAM mapping to autonomous operation, assisting in rapid deployment and system integration of AMR
The MDAMR-SL600 adopts laser SLAM autonomous navigation, which can create and save maps according to the actual on-site environment without the need to lay wires or set fixed landmarks. Through the scheduling system, AMR can be configured, stations can be added, straight and curved routes can be planned, and communication configuration can be completed through TCP Client and AMR Protocol, achieving a complete deployment process from map construction to autonomous navigation operation.



Dimension



structure



structure



6 structure

MDAMR-SL600 Lift Platform AMR | Laser Navigation & Automatic Charging
MDAMR-SL600 is a compact laser navigation AMR that integrates functions such as a lifting platform, front and rear laser navigation and obstacle avoidance, automatic charging brush, collision sensors, and dual wheel differential drive. It is suitable for material handling and automated logistics between factories, warehouses, workshops, and production lines. The top lifting platform can be used for cargo carrying and transportation, with front and rear laser sensors working together to achieve 360 ° obstacle avoidance protection, and automatic charging plate brushes to reduce manual charging operations. Compact body is suitable for limited space and narrow passages, which can help enterprises achieve more flexible and efficient AGV/AMR material handling.



more Specification



7 parameters

The MDAMR-SL600 is an industrial AMR with a 600 kg load capacity that is intended for automated material handling in warehouses and manufacturers. With its small 926 × 756 × 285 mm chassis, 60 mm lifting height, differential drive, and SLAM navigation, the mobile robot can rotate in position, turn left and right, and move forward and backward. It has a maximum speed of 1.5 m/s, a lithium iron phosphate battery, manual or automatic charging, and safety features like an emergency stop button, crash bumper, and LiDAR. Integration with industrial material handling and automation applications is further supported by wireless connectivity.



Product detail


product-280-287
product-281-287
product-281-287

product-280-287


FAQ





01.What is the load capacity of MDAMR-SL600?

The current rated load capacity of MDAMR-SL600 is 600kg. Depending on the material weight, handling method, and application requirements of different projects, the load capacity can also be customized according to actual needs.

02.What navigation method does MDAMR-SL600 use?

MDAMR-SL600 adopts SLAM navigation, suitable for autonomous movement and material handling in factory and warehouse environments. Combined with laser navigation related configurations, it can reduce reliance on traditional fixed guidance methods and facilitate deployment according to actual application environments.

03.What is the lifting height of MDAMR-SL600?

The standard lifting height of MDAMR-SL600 is 60mm. The lifting mechanism is used to meet the needs of cargo, shelves, or material handling, achieving automatic lifting and transportation.

04.What driving modes does MDAMR-SL600 support?

This AMR adopts differential drive and supports forward, backward, left and right steering, as well as stationary rotation. It can move and turn in different directions according to the planned route.

05.What are the charging and safety configurations of MDAMR-SL600?

MDAMR-SL600 is equipped with lithium iron phosphate batteries, supporting manual and automatic charging. Simultaneously equipped with safety protection devices such as LiDAR, anti-collision edge contact, and emergency stop button, providing corresponding safety protection for industrial material handling process.

06.What material handling tasks can MDAMR-SL600 be used for?

MDAMR-SL600 supports handling tasks such as single point delivery, multi-point delivery, and multi-point pickup. In practical applications, it can be used to deliver raw materials from designated locations to production lines, or to deliver materials to multiple equipment or production stations according to tasks; For the handling of shelves and material trucks, AMR can complete docking, lifting, and transportation
