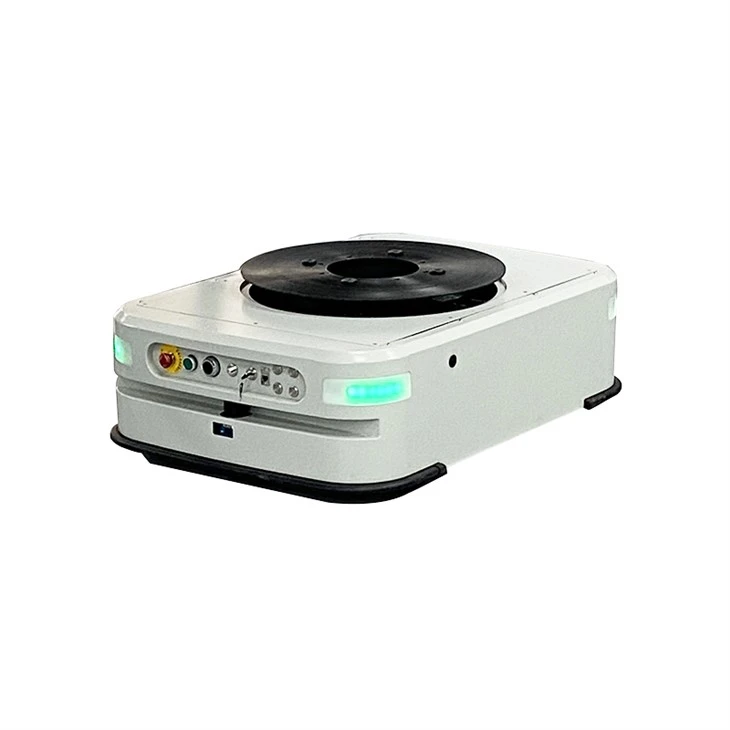

The 500kg Material Handling Mobile Platform is an intelligent handling robot designed specifically for automated logistics in factories, warehouses, and production workshops. Adopting a compact latent structure and lifting mechanism, it can lift supporting material trays or customized carriers, achieving automated material transfer between workstations and within storage areas. The vehicle adopts a combination of QR code and gyroscope navigation, supports autonomous driving along the planned path, with a maximum lifting load of 500 kg and a lifting stroke of 50 mm. It is equipped with obstacle avoidance sensors, safety edge contact, and sound and light prompt devices to enhance safety during operation. Combining rechargeable batteries with online charging capabilities can help companies reduce manual handling, improve material flow efficiency, and optimize internal logistics processes.
Send Inquiry
Chat Now

500kg Material Handling Mobile Platform
Model:MDAGV-Q500

product-1172-359

1 MD banner



500kg Material Handling Mobile Platform is an intelligent handling equipment designed for industrial logistics and automated material transportation scenarios. It can execute cargo transfer tasks according to preset routes, reducing the need for manual participation in repetitive handling operations. The 500kg Material Handling Mobile Platform achieves automated transportation of goods between storage areas, production workshops, and different work sites through the coordination of the driving system and navigation system, helping enterprises optimize logistics processes and improve material turnover efficiency. In practical applications, 500kg Material Handling Mobile Platforms can meet the handling needs of internal logistics, warehouse cargo transfer, and large-scale logistics areas in factories according to specific vehicle models and on-site configurations. Automated transportation can help reduce manual handling workload and lower the operational burden caused by repetitive operations. If the 500kg Material Handling Mobile Platform is equipped with corresponding monitoring and scheduling functions, operators can also view the vehicle's location and operating status, improving the visual management level of the transportation process. Through reasonable route planning, equipment configuration, and on-site deployment, 500kg Material Handling Mobile Platforms can improve logistics connection efficiency and provide support for enterprises to promote material handling automation and logistics process optimization.



features





1 smart logistic solution



1 intelligent logistic solution



2 QR code navigation



2 QR code navigation AGV



2 5mm positioning accuracy



2 positioning accuracy 5mm



3 jacking up function



3 AGV lifting function



4 structure

5 details



Dimension





6 dimension





Specification





ltem

Data

Model

MDAGV-Q500

Navigation method

QR code + gyroscope

Dimensions

L1000*W690*H400mm

PayLoad

500kg

Moving speed

0.8m/s

Battery Data

48V,30Ah

Weight

<200kg

Obstacle avoidance

Ultrasonic sensor and Bump sensor

Positioning accuracy

±5mm

Lifting distance

50mm

Communication

CAN/RS232/RS485/1O/WIFI

Contact Engineers for Details



FAQ





01.How can 500kg Material Handling Mobile Platform be used in conjunction with material trays?

The 500kg Material Handling Mobile Platform adopts a lifting structure, which can automatically transport materials by lifting material trays or specialized vehicles that match the vehicle. Before practical application, it is necessary to design according to the size of the goods, the structure of the carrier, and the docking position to ensure that the lifting and handling process meets the requirements of on-site use.

02.What are the requirements for 500kg Material Handling Mobile Platform to operate on the ground?

To ensure the normal and precise operation of the vehicle, 500kg Material Handling Mobile Platform should be used on a dry, clean, flat ground with appropriate friction and load-bearing capacity. Before deployment, it is recommended to check the ground conditions and operating routes to avoid ground conditions affecting the stability of vehicle travel and handling.

03.Can the 500kg Material Handling Mobile Platform directly carry goods?

500kg Material Handling Mobile Platform mainly completes material handling through lifting matching trays or customized carriers. It is not recommended to place materials directly on the AGV body, nor can the vehicle be used for carrying people. Before use, it should be confirmed that the structure and dimensions of the vehicle match the actual handling requirements.

04.What will happen if the 500kg Material Handling Mobile Platform encounters obstacles on its operating path?

500kg Material Handling Mobile Platform is equipped with obstacle avoidance sensors that can detect obstacles on the operating path. When the system detects an obstacle, the vehicle will sound an alarm and pause its movement; The 500kg Material Handling Mobile Platform is also equipped with a safety edge that can trigger corresponding stop protection in case of contact. In actual use, safety management still needs to be combined with the on-site environment.

05.How to set the operating path of 500kg Material Handling Mobile Platform?

The 500kg Material Handling Mobile Platform adopts a combination of QR code and gyroscope navigation, and the operating path needs to be planned in conjunction with the on-site layout and navigation scheme. During deployment, corresponding QR code identifiers should be arranged according to usage requirements, and path configuration and operation testing should be completed according to equipment debugging specifications to ensure that vehicles can perform transportation tasks according to the planned route.

06.How to improve the efficiency of 500kg Material Handling Mobile Platform in the production workshop?

It is recommended to set material pick-up and drop points, transportation routes, and task connection methods reasonably according to the production pace, and ensure that the supporting 500kg Material Handling Mobile Platform meet the requirements of vehicle lifting and docking. At the same time, keeping the operating route clean and conducting daily inspections and maintenance according to the product manual can help reduce unnecessary work interference and improve the efficiency of material transportation in the workshop.
