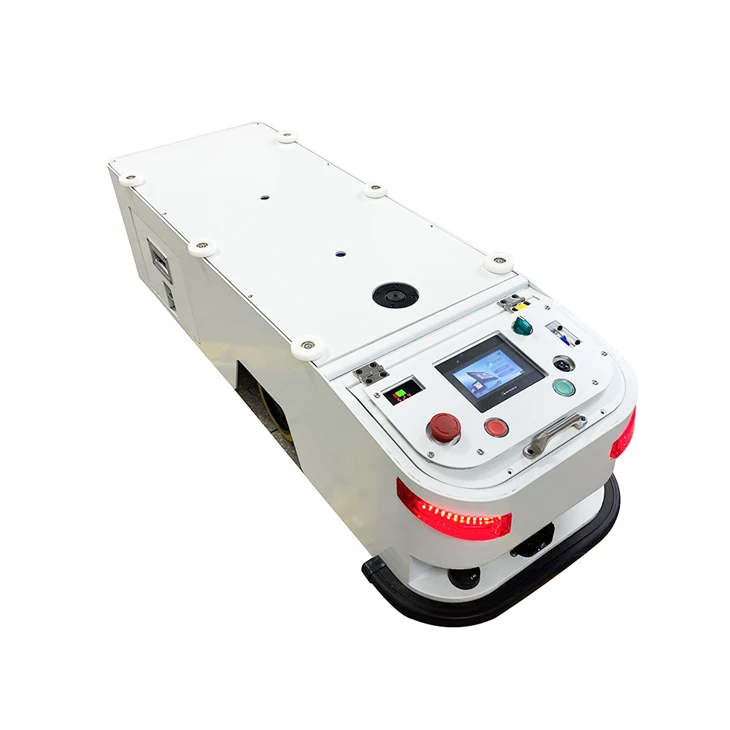

A Latent AGV Equipment With A Load Capacity Of 1000kg.

A Stealth Hauler 1000kg Hidden AGV central management system can change the driving route of the 1000kg lurking agv to the maximum extent, and can control the traffic of the 1000kg lurking agv running route after assigning the task of the car, which has good flexibility.

Send Inquiry

Chat Now

Stealth Hauler 1000kg Hidden AGV
Model：MDAGV-LU03

product-1172-359

product-1172-438

Strong load capacity: capable of carrying 1000kg of goods, suitable for heavy material transportation, meeting the handling needs of large components, batches of goods, etc. in industrial production, reducing transportation frequency, and improving efficiency.
Flexible stealth design: It can operate under shelves and carts without the need for additional loading and unloading platforms, saving space, and can operate in narrow passages, adapting to complex site layouts.
High degree of automation: The management system can automatically plan paths and execute tasks, reducing manual intervention and labor costs. It can also operate continuously 24 hours a day, improving logistics operation efficiency.

Dimension

product-3608-2000

Specification

Name	Specification
Model	MDAGV-LU03
Dimensions	1237436353mm
Navigation Method	Magnetic navigation
Walking Direction	Forward and steer
Loading Speed	0.78m/s
Load Capacity	1000KG
Battery	Lithium battery
Charging Method	Manual charging/Wireless charging
Human Interface	HMI
Alarm Form	Music alarm+ light alarm
Power System	Differential drive wheel
Security System	laser sensor + bumper sensor + emergency stop button
Control System	PLC
