Overview

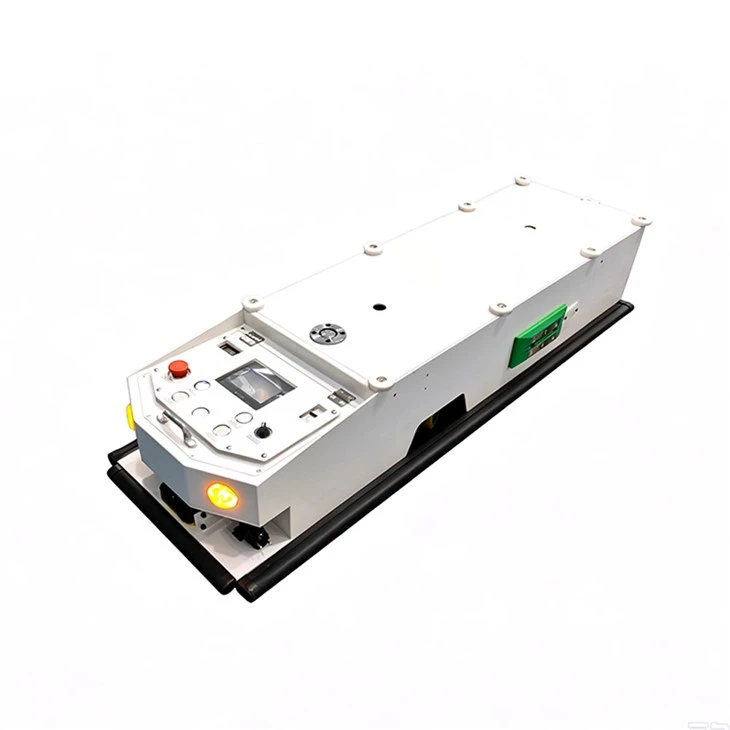

MDBOT CE Certificate 500kg magnetic navigation traction AGV is an automatic guided transportation equipment designed for factories, warehouses, and logistics transportation scenarios. It uses magnetic navigation to achieve stable fixed route travel and can be used for automated operations such as material handling, production line distribution, logistics traction, and turnover transportation. The rated traction force of the AGV is 500kg, and it adopts a low and compact body structure, which is easy to integrate with the tractor, material truck, and automated logistics system. The magnetic navigation solution has the characteristics of simple route planning, flexible deployment, and stable operation, making it suitable for repetitive and high-frequency industrial material transportation tasks. The device supports automatic navigation and intelligent motion control, which can help enterprises reduce manual handling, improve logistics transportation efficiency, and promote the upgrading of internal logistics automation in factories. The product has passed CE certification and is suitable for various industrial application scenarios such as automobile manufacturing, electronic manufacturing, warehousing and logistics, and production workshops.
Technological advantages
◎ 500kg High-Capacity Towing
Rated traction force of 500kg, suitable for production line distribution, material truck traction, and industrial material transportation.
◎ Stable Magnetic Navigation
Magnetic navigation AGV runs automatically along a preset route, suitable for fixed routes and high-frequency material handling.
◎ Compact AGV Design
Low and compact structure, easy to integrate with tractor trucks, material trucks, and automated logistics systems.
◎ Automated Material Handling
Reduce manual handling and repetitive transportation operations, and improve the internal logistics efficiency of the factory.
◎ CE Certified
Compliant with CE certification requirements, suitable for industrial scenarios such as factories, warehouses, production lines, and logistics centers.
Dimension
AGV structure
This CE Certificate 500kg magnetic navigation traction AGV operator control panel, which combines an HMI display, start button, emergency stop, power switch, and status indicator for easy forward and stop operation, is made for dependable and user-friendly AGV operation. The easily accessible emergency stop button enables prompt shutdown when necessary, and the intuitive HMI interface enables operators to monitor operating status and effectively handle the vehicle. This AGV control panel, designed for industrial material handling, can be used with autonomous towing vehicles, towed AGVs, and smart logistics systems to enhance handling efficiency, safety, and operational ease.
Specification
|
Name |
Specification |
|
Dimensions |
L1493*W496*H286 |
|
Guide method |
Magnetic navigation |
|
Walking direction |
Forward,Steer |
|
Forward speed |
40m/min |
|
Carrying capacity |
500Kg |
|
Battery |
Lead-acid batteries |
|
Charging method |
Offline charging / automatic charging |
|
The way of electrical display |
Electronic display |
|
Safety sensing distance |
Less than 3m |
|
Alarm form |
Music alarm and light alarm |
|
Power system |
Brushless DC motor |
|
Security system |
Infrared obstacle avoidance, mechanical anti-collision design, emergency stop button |
|
Control system |
PLC |
Features
The 500kg Compact Industrial AGV adopts magnetic navigation for automatic path guidance, with a load capacity of 500kg and a running speed of 40m/min, suitable for industrial material handling, production line distribution, and warehousing logistics transportation. Its compact size of 1493 × 496 × 286mm enables the AGV to adapt to narrow passages and limited workspace, and the 24V/200W drive system meets stable automatic transportation requirements. As a magnetic navigation AGV, industrial AGV, and automatic material handling vehicle, it can be applied to smart factories, warehouses, production workshops, and automated logistics systems.
The 500kg magnetic navigation latent AGV is an automatic guided transport vehicle designed for industrial logistics and intelligent material handling scenarios. It uses magnetic navigation technology to achieve stable and accurate route recognition and automatic driving. The rated load capacity of the vehicle is 500kg, and the maximum forward speed can reach 40m/min. It adopts 24V power supply and 200W drive system, balancing stable operation and efficient transportation. Its low and compact concealed structure can adapt to limited space and various industrial logistics environments, and can be used for workshop material distribution, warehousing and handling, production line docking, and automated logistics transportation. Simultaneously supporting offline and automatic charging methods, reducing manual intervention and improving the convenience of AGV continuous operation. The combination of multiple security protections and precise magnetic navigation provides enterprises with stable, reliable, and easy to deploy intelligent logistics handling solutions.
