Unmanned Forklift AGV
Unmanned Forklift AGV

Unmanned Forklift AGV

Unmanned forklift AGV, as the name suggests, is a forklift-type automatic guided vehicle that can navigate and handle goods autonomously without manual operation, and can also be called ‘driverless forklift’ or ‘forklift AGV’.
Send Inquiry
Chat Now

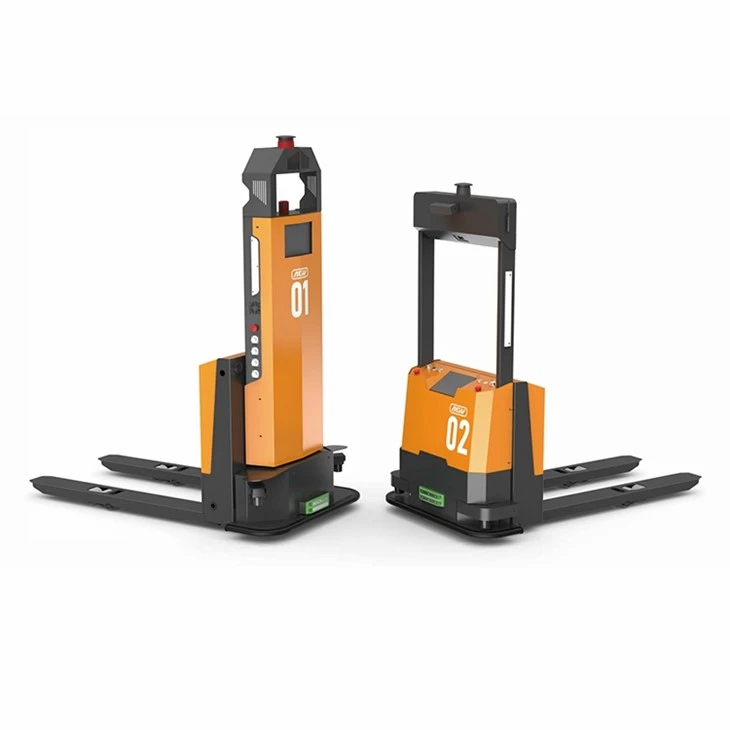

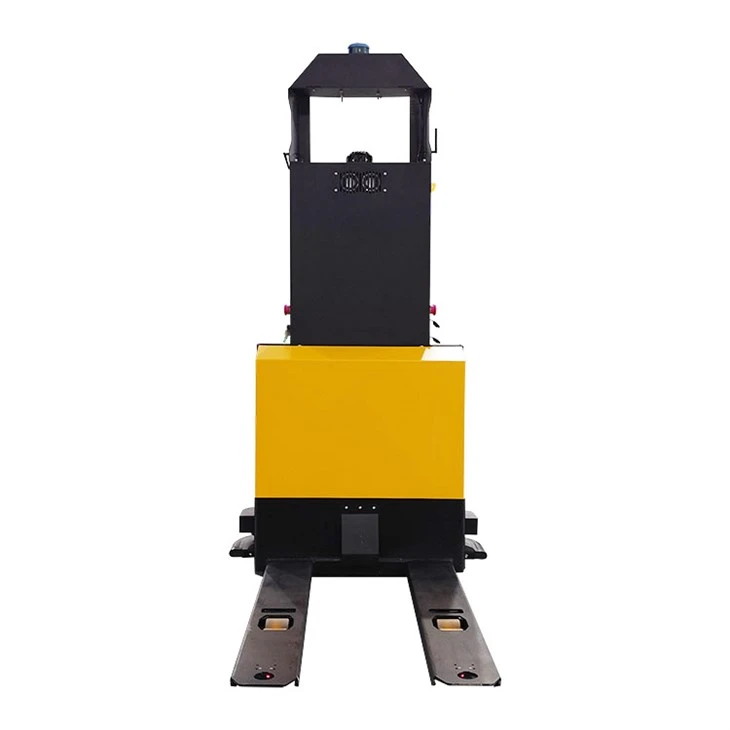

Unmanned Forklift AGV
Model:MDAGV-AFKLR1500

product-1024-824

product-1000-1000



Unmanned forklift AGV, as the name suggests, is a forklift-type automatic guided vehicle that can navigate and handle goods autonomously without manual operation, and can also be called 'driverless forklift' or 'forklift AGV'. Unmanned forklift AGV is the integration of forklift technology and AGV technology, with efficient autonomous decision-making and movement capabilities, it can travel automatically or semi-automatically in accordance with preset navigation paths and rules to complete material handling tasks. Its working principle is based on advanced navigation technologies, such as laser navigation, inertial navigation, vision navigation and other technologies, composed of high-precision positioning system, so that the vehicle can achieve autonomous positioning and planning in the complex path environment. At the same time, through the integrated sensors and control system, the unmanned forklift AGV is able to monitor the surrounding environment in real time to avoid collision and ensure safe operation. Compared with traditional forklift trucks, unmanned forklift AGV have excellent stability, high flexibility and adaptability to the environment, greatly reducing the labour costs of enterprises.





Dimension





product-1128-726





Specification





Name

Specification

Model

MDAGV-AFKLR1500

Dimensions

L1615mm*W892mm* H2000mm(customizable)

Operation type

Manual / Auto

Navigation method

Laser SLAM

Load

1500KG

Load center distance

600mm

Weight (including battery)

240KG

Standard maximum lifting height

115mm

The height of the fork surface after the fork is lowered

80mm

Fork size

50/150/1150mm

Fork outer width

540/600/685mm

Turning radius

1175mm

HMI

LCD

Walking speed

1.3m/s





AGV structure





product-1000-1000





Features





product-1002-694

product-1033-1000

product-1030-852

product-1404-1400

8

10

11

12

13

14

15
