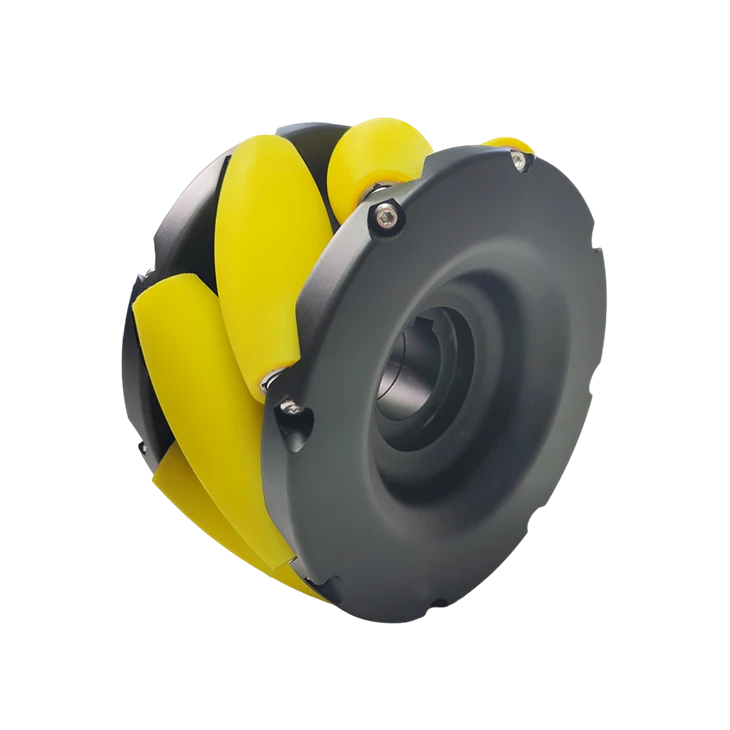

203mm Mecanum Wheel for Omnidirectional AGV and Mobile Platforms
Model: MDMW203
6061
aluminum hub
6061/PU
rollers
45#
roller shafts
8mm
shaft diameter
This innovative agv 203mm Mecanum Wheel for Omnidirectional AGV and Mobile Platforms features a proprietary multi-roller architecture that achieves true holonomic movement with unparalleled precision. The technology's distinct advantage lies in its dynamic motion synthesis capability, where each wheel's rotational vectors are intelligently processed to enable seamless omnidirectional travel. A reinforced dual-race hub design with precisely calibrated rollers ensures uninterrupted ground contact across irregular surfaces with angular variations up to 5 degrees, guaranteeing reliable power transmission. When diagonally positioned wheels operate in opposing directions, the system produces exact sideways motion, while uniform wheel rotation allows for immediate center-point turning without positional drift. Four modular drive units, each incorporating scientifically optimized roller angles, synchronize perfectly to neutralize inertial forces, resulting in exceptionally smooth operation. The adaptive control system continuously adjusts for ground inconsistencies while maintaining balanced weight distribution across all traction surfaces - an essential characteristic for automated logistics vehicles, industrial robotics, and high-accuracy transport solutions demanding superior maneuverability, grip optimization, and precise movement in constrained environments. The unified drive mechanism offers immediate directional transition capability while enhancing power efficiency through advanced torque vectoring, establishing a new benchmark for omnidirectional drive performance in industrial applications.
203mm
Compact Mecanum Wheel
With a 203mm wheel diameter and 105mm width, MW203 provides a compact wheel configuration for omnidirectional mobile platforms.
8 PU
Rollers for Omnidirectional Movement
The MW203 is equipped with 8 rollers. Its angled roller arrangement enables the wheel to generate forward/backward and lateral movement vectors, supporting flexible omnidirectional movement.
6061
Aluminum Hub
The wheel uses 6061 material for the hub, while the roller material is specified as 6061/PU, combining a lightweight aluminum structure with polyurethane roller components.
800kg
Maximum Load per Set
The specified maximum load is 800kg for a complete set of four wheels. The product page should therefore describe this as a four-wheel set load rating, rather than claiming 800kg per wheel.
feature
The 203mm Mecanum Wheel for Omnidirectional AGV and Mobile Platforms decomposes the driving force generated by the rotation of the wheel into force vectors in different directions by arranging multiple inclined rollers around the wheel hub. By controlling the rotation direction and speed of the four Mecanum wheels, flexible multi-directional motion can be achieved without changing the orientation of the vehicle, making it suitable for applications such as AGVs, mobile robots, omnidirectional mobile platforms, and material handling equipment.
The 203mm Mecanum Wheel for Omnidirectional AGV and Mobile Platforms usually consists of two left-hand Mecanum wheels and two right-hand Mecanum wheels, which achieve multi-directional motion by coordinating the rotation direction and speed of different wheels. A reasonable four-wheel configuration can create motion effects such as forward, backward, left and right, oblique, and rotation, allowing AGVs, omnidirectional mobile robots, and material handling equipment to move flexibly in limited spaces.
The 203mm Mecanum Wheel for Omnidirectional AGV and Mobile Platforms is composed of 6061 hub, 6061/PU roller, and 45 # roller shaft, equipped with 8 rollers, and forms the unique omnidirectional motion structure of the Mecanum wheel through the inclined arrangement of the rollers. PU rollers, roller shafts, bearings, and side plates together form a complete wheel assembly, providing flexible multi-directional movement capabilities for AGVs, omnidirectional mobile robots, and material handling equipment.
Maintenance suggestions for mecanum wheel
Proper daily maintenance helps to maintain the stable operation of the MW203 Mecanum wheel. It is recommended to check the wear of the roller shaft approximately every 3 months under normal usage conditions, and lubricate the friction parts such as the wheel axle, sealing ring, and roller bearing approximately every 5 months. The product is recommended for use indoors and on relatively flat surfaces. When using, avoid exceeding the rated load-bearing capacity and avoid using it in high-temperature environments.
Application scenarios of Mecanum wheel
The MW203 Mecanum wheel is suitable for mobile devices that require omnidirectional movement and flexible steering, and can be applied to AGV systems, omnidirectional mobile platforms, omnidirectional forklifts, material handling equipment, etc. Its multi-directional movement capability is also suitable for mobile platforms in narrow passages and limited spaces, as well as application environments with limited transfer space such as ships, providing flexible omnidirectional movement solutions for automated handling and mobile devices.
Specification
|
ltem |
Data |
| Model | MDMW203 |
| Diameter | 203.2mm |
|
Thicknesses |
105mm |
| Shaft hole type | keyway of flange |
| Bearing types | 2 types |
| Wheel material | Aluminum alloy 6061 or 7075 |
| Wheel surface treatment process | Anodic oxidation |
| Load Capacity | 800KG/set,4 pieces/Set |
| Roller Material |
Imported Polyurethane |
Drawing
FAQ
01.What is a Mecanum wheel used for?
02.What is the load capacity of the MW203 Mecanum Wheel?
03.How many rollers does the MW203 Mecanum Wheel have?
04.What material are the Mecanum wheel rollers made of?
05.Does the MW203 support lateral movement?
06.How many Mecanum wheels are required for omnidirectional movement?
